Svbony SV405CC Cooled Color Astronomy Camera
Delivery: Ships from Svbony warehouse located in Hong Kong. The estimated delivery time is 10 business days. 30 days returns policy. Returns location: Rancho Cordova, California, United States.

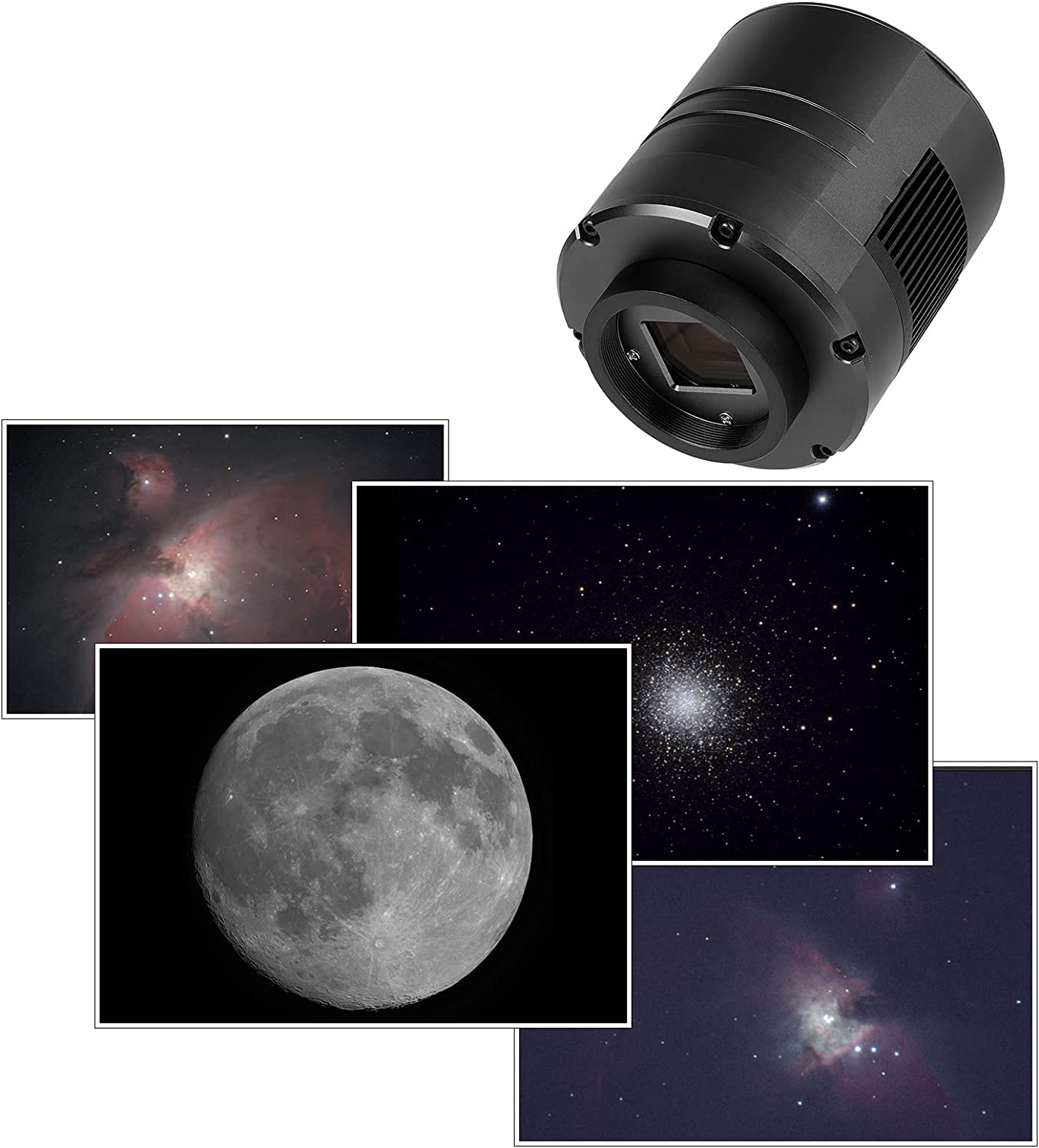

- SV405CC deep sky camera; cooled color astronomy camera; the deep space shooting targets are mainly nebulae; galaxies; star clusters; multiple stars; etc.
- It is designed with imx294 color CMOS sensor; the imx294 sensor adopts the 4/3" format and provides the necessary number of pixels for true 4k output at 120 frames per second

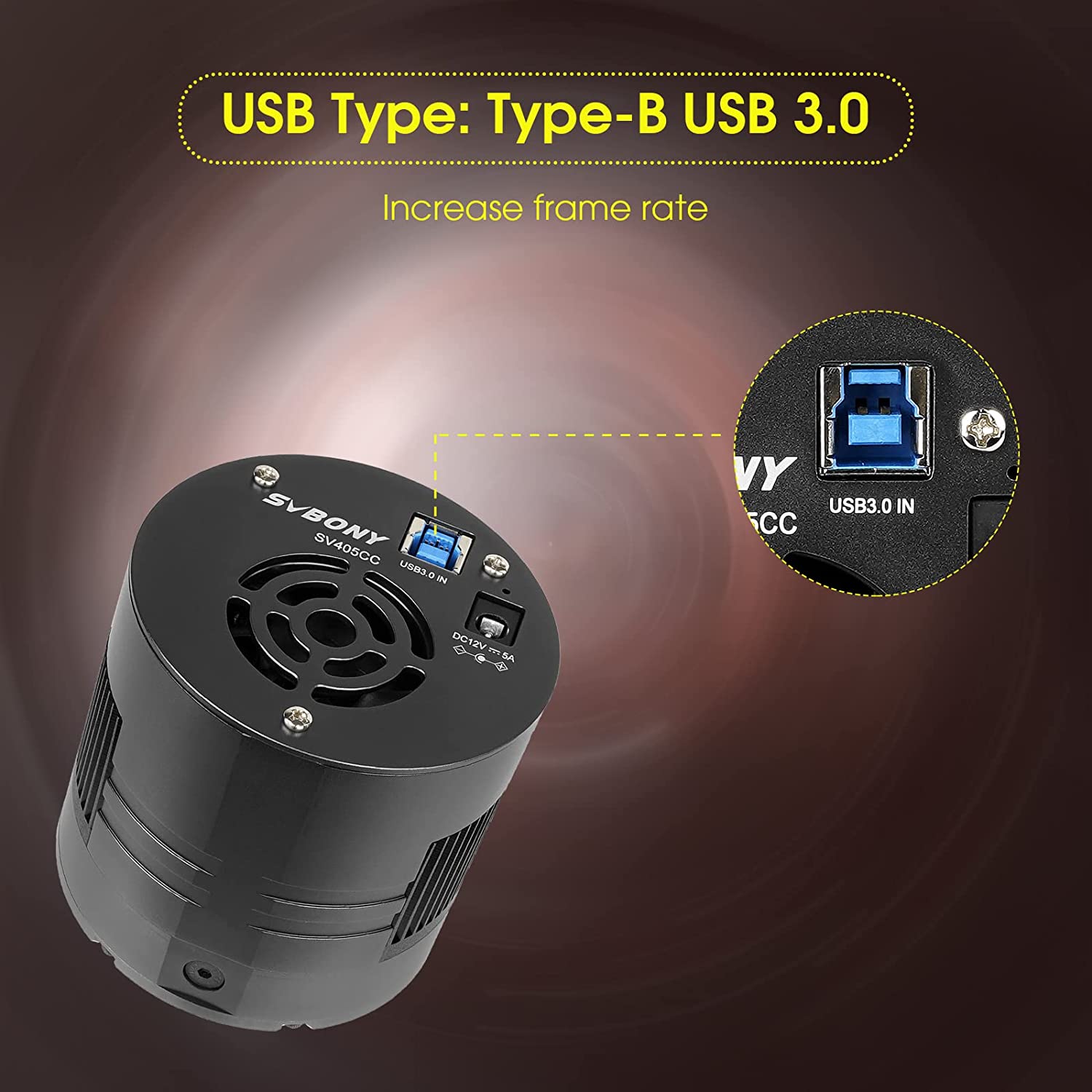

- USB 3.0 high-speed interface; the bandwidth of up to 5gb allows the camera to run at 19 frames per second in raw8 mode and 16 frames per second in raw16 mode at full resolution of 11.7 million pixels
- Cooling System; thanks to the two-stage tec cooling; the camera can lower the CMOS sensor temperature to 30° Celsius below ambient temperature; which can greatly reduce dark current generation and sensor noise even during longer exposure times
- Supported Operating Systems: compatible with Windows; Linux; Mac OS; Chrome OS and Raspberry Pi systems by running astrodmx capture; for windows system; also support sharpcap; theskyx and other software run through ascom platform by using ascom driver
- Description
- Specifications
- What's included
- Reviews

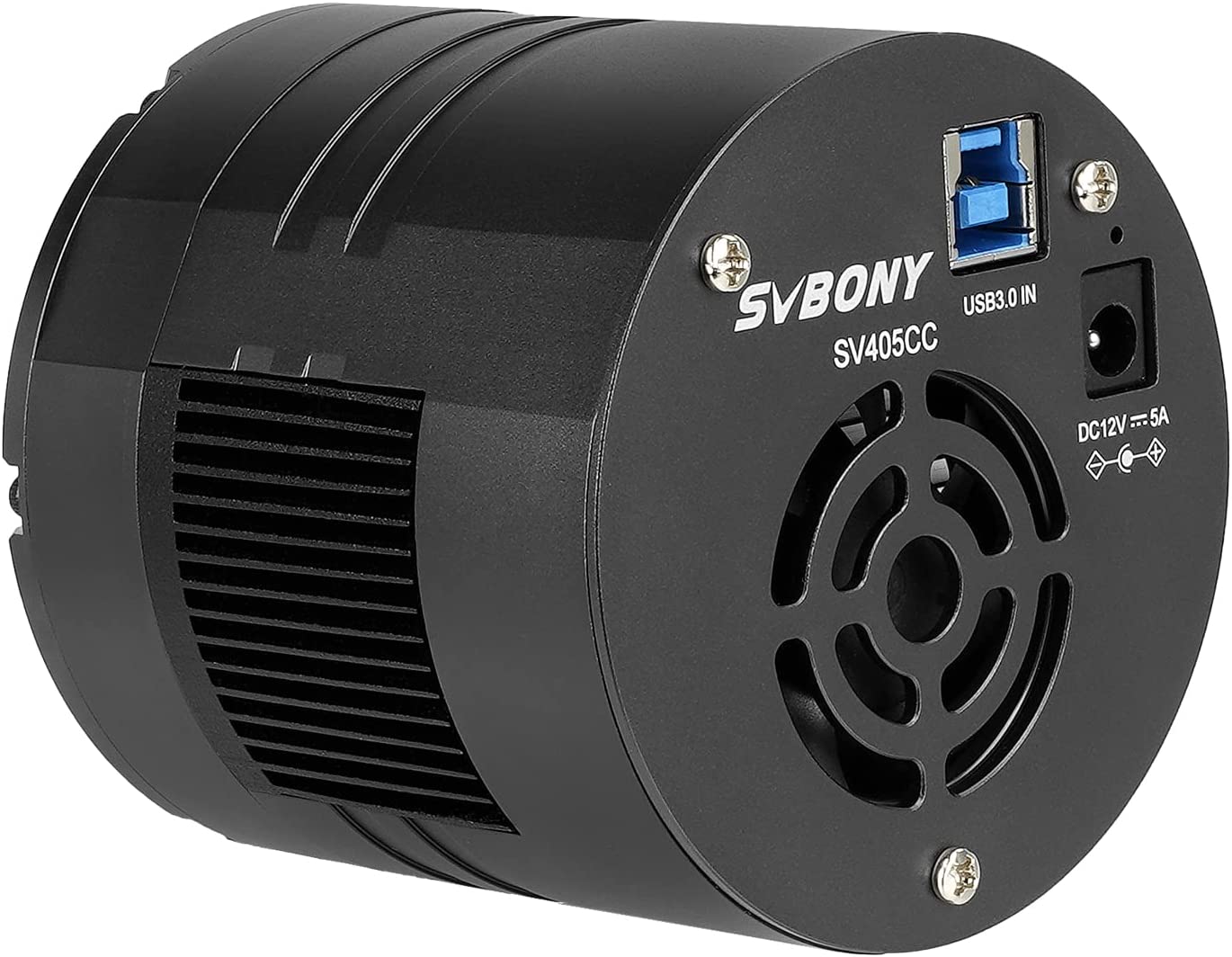

SVBONY TEC Cooled SV405CC OSC Camera for Deep Space Astrophotography
Back-illuminated sensor – improving sensitivity and reducing noise. Excellent micro-4/3" CMOS sensor with 4144x2822 (11.7 megapixel) resolution to capture fine details in astronomical objects.
Cooling System
The two-stage TEC cooling, the SV405CC can lower the CMOS sensor temperature to 30°C Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during longer exposure times.

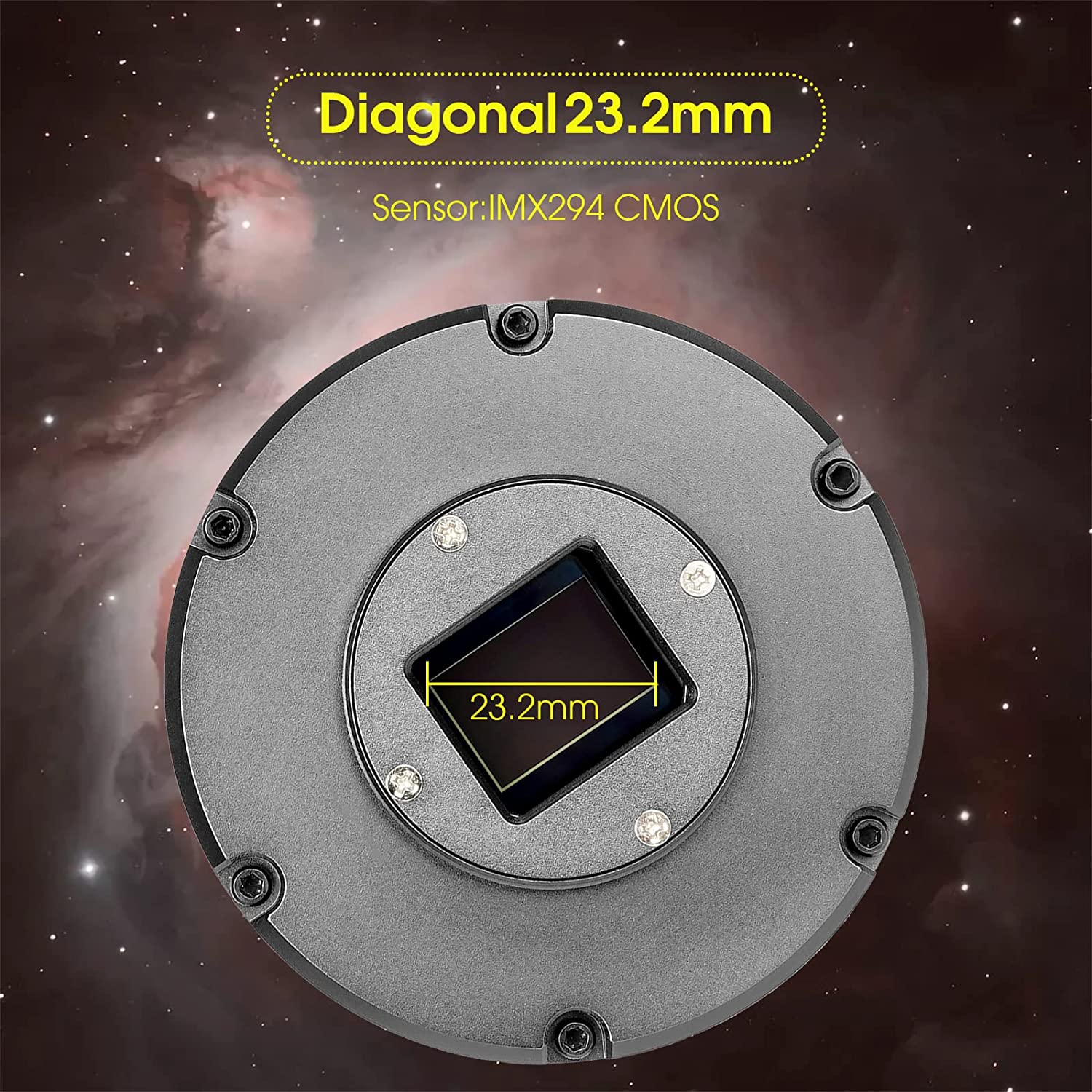

IMX294 sensor
The IMX294 sensor adopts the 4/3 format and provides the necessary number of pixels for true 4k output at 120 frames per second.
Exceptional low-light performance of SNR1s：0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 4.63um.
With ADC 10-bit output mode, the SV405CC can run up to 19fps at 4k format when used with USB 3.0
HCG mode--When set the gain at 120 or higher, the HCG mode is automatically enabled, and reduce the read noise to even lover levels without loss the dynamic range.
Supported Operating Systems
SV405CC camera is compatible with Windows, Linux, Mac OS, Chrome OS and Raspberry Pi systems by running AstroDMx Capture.
For Windows system, Also support Sharpcap, N.I.N.A., TheSkyX and other softwares run through ASCOM platform by using ASCOM driver.
