Astronomik UHC Clip-Filter EOS APS-C
Delivery: Ships in 5 to 10 business days after the date of purchase.
- Large filters for large camera lens objectives are very expensive
- If you are using an Off-Axis Guider stars will be dimmed on your autoguiding camera when a 2" round mounted filter is threaded to a corrector being ahead of the reflecting prism from the light path.
- For very fast (low f/ number) telescopes like the Vixen R200SS or the Takahashi “Epsilon” astrograph, a filter drawer or a filter wheel cannot be used since the distance to the corrector lenses would be changed.
- With long exposure times your camera’s sensor chip is exposed to more dust
With the Astronomik Clip-Filter System you can take care of all of these problems at once!

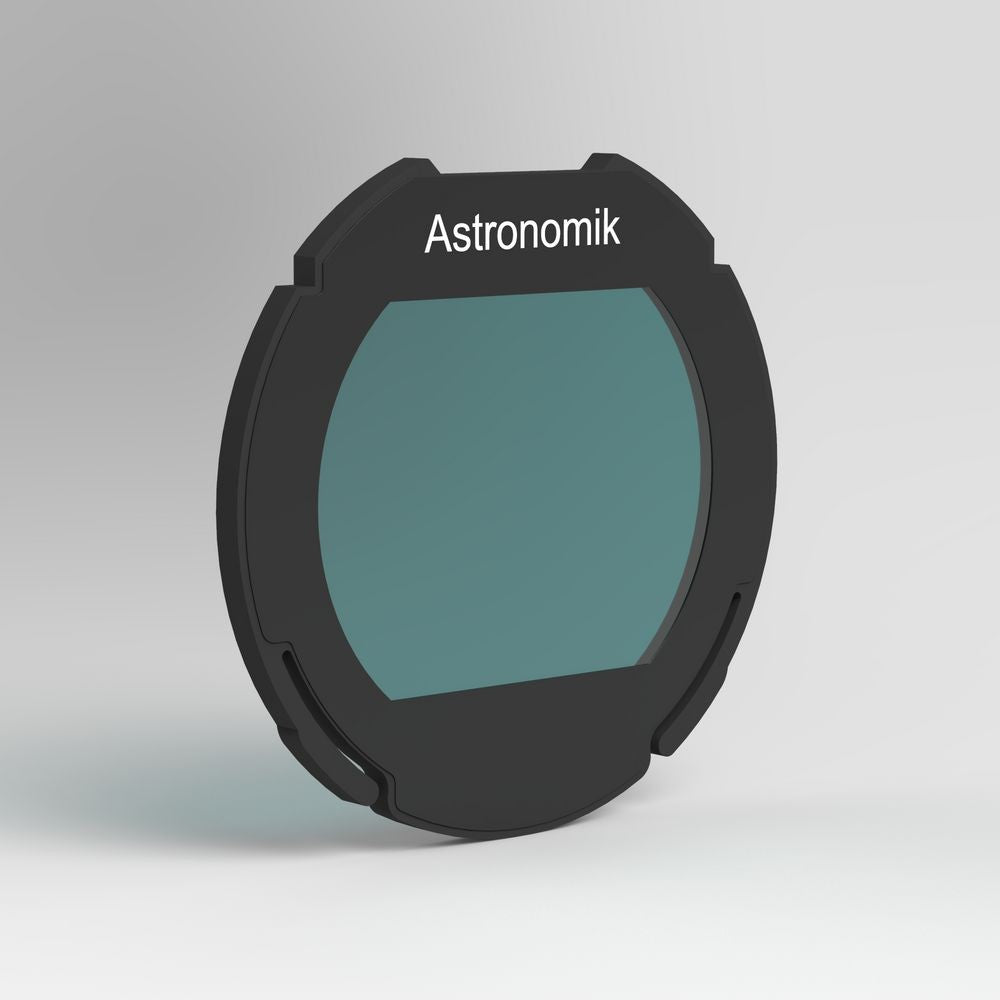

The patented Astronomik Clip-Filter System is black anodized aluminum and laser-cut on state-of-the-art modern machines. It can be inserted within seconds directly into the EOS camera body. There are no changes necessary and all lens functions (focus, screen, image stabilization) remain functional!
Almost all Canon system lenses (with the exception of the genuine EF-S series lenses), all lenses (known to us) from third party manufacturers and all M42 and T2 lens adapters, can be used with the Astronomik Clip-Filter System. The Clip-Filter System also acts as an outstanding dust shield, which prevents the possibility of dust settling on the sensor during long time exposure (The MC-Clear filter does not have a filter effect and only acts as a dust shield.)
- Description
- Specifications
- Compatibility
- Reviews
Astronomik UHC Clip-Filter EOS APS-C
You will enjoy using your Astronomik UHC filter because you will see more stars and more details in deep-sky-objects compared to using filters from all other manufacturers.

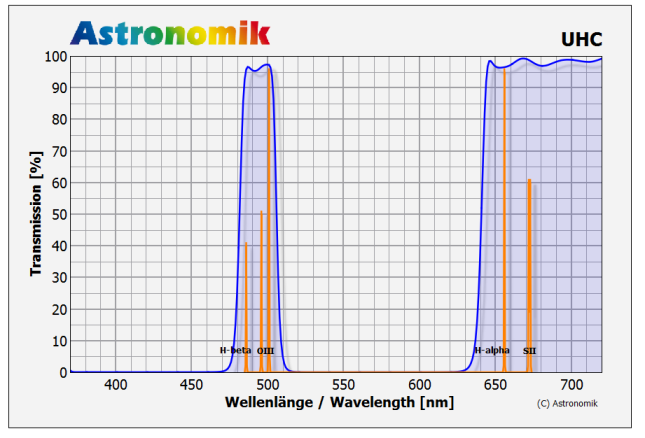

The Astronomik UHC (Ultra High Contrast) filter allows the transmission of nearly 100% of the radiation from both O-III and the H beta lines. Though the second window for the H-alpha-line is not intended for visual observing, it is important, if the filter is used with an electronic device. All annoying, scattered light from other wavelength sources, including local artificial light pollution, is reliably filtered out. With this strong blocking of the sky background an unexpected wealth of detail becomes visible for gas nebulae and planetary nebulae.
Main use
Astronomik UHC filters’ astounding high light transmission brings better views of deep-sky-objects even to small telescopes! The high transmission of our optical glass filters means that enough light is available to allow successful visual observations with telescopes beginning at 2" (50mm) aperture. Our Astronomik filters are optimized for use with telescope focal length f / ratios of f/4 to f/15. Transmission losses and chromatic distortions, which arise with other filters, only occur with Astronomik filters when extremely bright aperture ratios of 1:2 and more come into play. Another major advantage of our Astronomik UHC filter is the high optical quality of the filter glass. When using Astronomik UHC filters you will quickly notice the same needle-sharp stars which you are familiar with from your astronomical instrument without any filter!
Important: Full Spectrum modified cameras will need an additional IR-block-filter.
Mounting the Astronomik Clip-Filter:
Removing the Clip-Filter
California Residents: Please check Proposition 65 Warning Website about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. https://www.p65warnings.ca.gov/
Technical Data
- typ. 95% transmission at 486nm (H-beta)
- typ. 95% transmission at 496nm (OIII)
- typ. 95% transmission at 501nm (OIII)
- typ. 95% transmission at 656nm (H alpha)
- optimum position of transmission for telescopes with focal ratios from f/10 to f/3,5
- Entire Blocking of annoying wavelengths
- Ideal All-round Deep Sky filter even for small telescopes
- Not sensitive to humidity or aging
- Scratch-resistant!
- Excellent carrier material. The optical performance of your telescope is not reduced by the filter in any way.
- Parfocal with other Astronomik filters
- Glass thickness: 1mm
- Completely resistant against high humidity, scratches and aging effects
- Diffraction limited, the filter will not reduce the optical performance of your telescope!
- Astronomik filters are delivered in a high-quality, long lasting, filter box
| Canon EOS | suitable for Clip-Filter | astro modification possible | Live-View | Megapixel |
| 7D MkII | yes | no filter for replacement needed | yes | 20,2 |
| 7D | yes | no filter for replacement needed | yes | 18,0 |
| 20D | yes | filter for replacement needed | no | 8,2 |
| 20Da | yes | filter for replacement needed | yes | 8,2 |
| 30D | yes | filter for replacement needed | no | 8,2 |
| 40D | yes | no filter for replacement needed | yes | 10,1 |
| 50D | yes | no filter for replacement needed | yes | 15,1 |
| 60D + 60Da | yes | no filter for replacement needed | yes | 18 |
| 70D | yes | no filter for replacement needed | yes | 20,2 |
| 77D | yes | no filter for replacement needed | yes | 24,2 |
| 80D | yes | no filter for replacement needed | yes | 24 |
| 90D | yes | no filter for replacement needed | yes | 32 |
| 300D / Digital Rebel / Kiss Digital | yes | filter for replacement needed | no | 6,3 |
| 350D / Digital Rebel XT / Kiss Digital N | yes | filter for replacement needed | no | 8,0 |
| 400D / Digital Rebel XTi / Kiss Digital X | yes | no filter for replacement needed | no | 10,1 |
| 450D / Rebel XSi / Kiss X2 | yes | no filter for replacement needed | yes | 12,2 |
| 500D / Rebel T1i / Kiss X3 | yes | no filter for replacement needed | yes | 15,1 |
| 550D / Rebel T2i / Kiss X4 | yes | no filter for replacement needed | yes | 18 |
| 600D / Rebel T3i / Kiss X5 | yes | no filter for replacement needed | yes | 18 |
| 650D / Rebel T4i / Kiss X6 | yes | no filter for replacement needed | yes | 18 |
| 700D / Rebel T5i / Kiss X7 | yes | no filter for replacement needed | yes | 18 |
| 750D / Rebel T6i / Kiss X8i | yes | no filter for replacement needed | yes | 24 |
| 760D / Rebel T6s / 8000D | yes | no filter for replacement needed | yes | 24,2 |
| 800D / Rebel T7i / Kiss X9i | yes | no filter for replacement needed | yes | 24 |
| 850D / Rebel T8i / Kiss X10i |
yes | no filter for replacement needed | yes | 24 |
| 1000D / Rebel XS / Kiss F | yes | no filter for replacement needed | yes | 10,1 |
| 1100D / Rebel T3 / Kiss X50 | yes | no filter for replacement needed | yes | 12,2 |
| 1200D / Rebel T5 / Kiss X70 | yes | no filter for replacement needed | yes | 18 |
| 1300D / Rebel T6 / Kiss X80 | yes | no filter for replacement needed | yes | 18 |
| 2000D / Rebel T7 / Kiss X90 | yes | no filter for replacement needed | yes | 24,1 |
| 4000D / Rebel T100 / 3000D | yes | no filter for replacement needed | yes | 18 |
| 100D / Rebel SL1 / Kiss X7 | yes | no filter for replacement needed | yes | 18 |
| 200D / Rebel SL2 / Kiss X9 | yes | no filter for replacement needed | yes | 24,1 |
| 250D / Rebel SL3 / Kiss X10 | yes | no filter for replacement needed | yes | 24,1 |
| M series (all versions) | yes: This version fit´s into the Canon Adapter EF to EF-M |
Important: Not suitable are cameras offered before 2003 and all varieties of the Canon EOS 1D and EOS M.
