Astronomik MC-Clear Clip-Filter EOS R XL
This filter should be used if the focal plane of your imaging system should stay in the same place as with other Astronomik filters in place. The multicoating prevents you from unwanted reflections. It blocks neither IR nor UV.

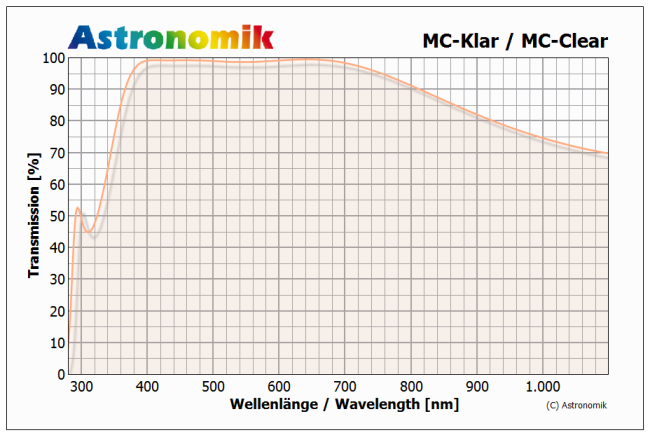

The second main application is dust protection of your system (telescope or camera). As the filter doesn’t modify the spectral transmittance of your system it doesn’t alter the colors. It’s great for keeping all dust away from your optics or sensor.
Lots of Astronomik MC Clear filters in custom diameters are sold to camera manufacturers worldwide. They like the great coating and scratch resistance!
Main use
The Astronomik MC Clear is made by the same high-end process as all other Astronomik filters. The coating has the same scratch resistance and the substrate has the same high quality. Because of this it is parfocal with all other Astronomik filters and can be used in any optical system for dust protection without modifying the spectral characteristics and without destroying the optical performance of your system.
Other uses
- As a dust protection of Schmidt-Cassegrain, Schmidt-Newton or Maksutov system or as a dust protection in front of DSLR camera.
- As an alternative instead of the UV-IR-Blocker if your system has no refracting elements.
Alternatives
You should think about using the IR-blocker or even the UV-IR blocker if you have a system with any refracting elements
Important: Full Spectrum modified cameras will need an additional IR-block-filter.

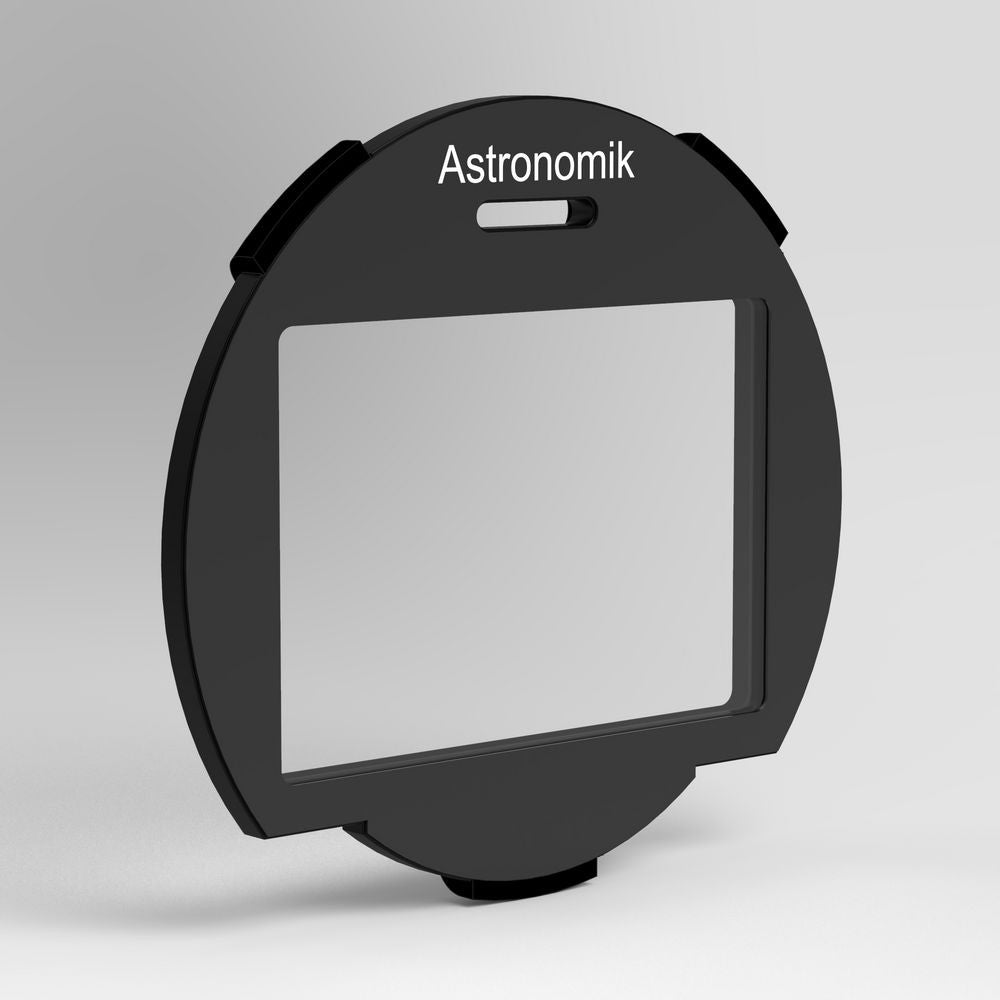

Mounting the Astronomik EOS R Clip-Filter:
Mounting the Astronomik EOS R Clip Filter is very easy: You don´t need any tools and filters may be changed even at night without any problems.
Remove the lens and take the Clip Filter from its box. Slide the Clip-Filter into the body and press it in with two fingers, until it rests flush. Re-install the lens. -Your camera is ready for imaging!
Removing the Astronomik EOS R Clip-Filter:
Removing the Astronomik EOS R Clip-Filter is very simple too: Pull the filter out with the supplied tool, get the filter with two fingers and put it into it´s storage box. -Done within seconds and the camera is working as before.
