Description

High Performance

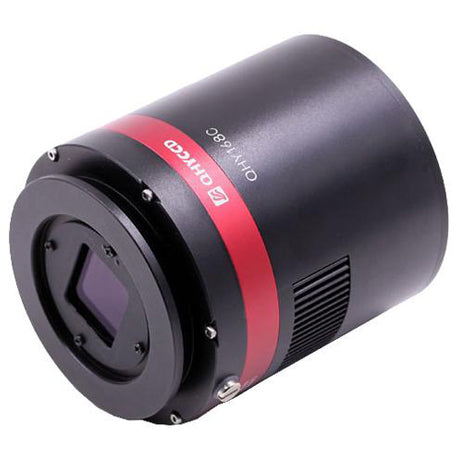

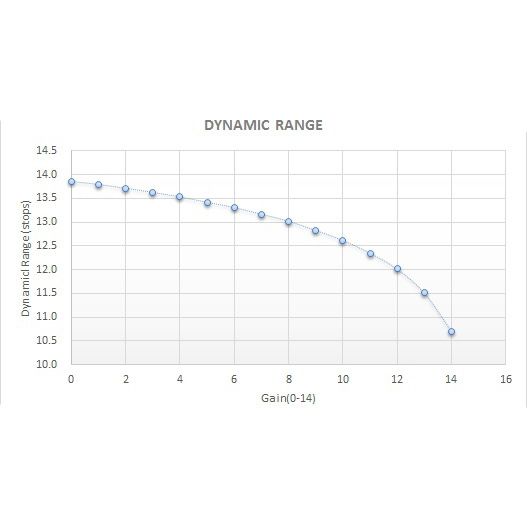

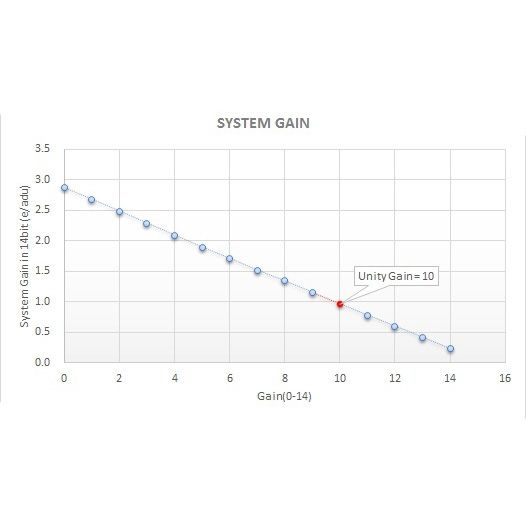

QHY168C has a APS-C format 16mega pixels, 14bit CMOS sensor IMX071. This sensor is also used in the D5100 camera. It has 3.2e low readout noise at lowest gain and 2.3e low readout noise at unity gain(system gain = 1e/adu). QHY168C has a nice dynamic range close to 14STOPs.

True RAW Image Output
QHY168C has the same CMOS sensor like D5100. Although DSLR has the RAW image output. But typically it is still not the really raw image. You will find the de-noise sign on the raw images from the hot pixel styles. While the QHY168C offers the TRUE RAW IMAGE OUTPUT and it gives original signal and keep the max flexibility of astronomy image process.

Unique Thermal Noise Reduction Technology
Besides the 2-stage TEC, QHYCCD has an unique thermal noise control technology to get the CMOS sensor very low thermal noise and make whole 165/168/247/367 product line has much better thermal noise performance than competitors.

128MB DDRII Image Buffer
QHY168C has 128MB DDRII image buffer to help the image cache to avoid the risk of frame lost. The data will store in the DDR for first then transfer to computer. It will avoid the USB port too busy when there is more USB3.0 camera connected.

Anti-Dew Technology
With the long time experience on the cooled CCD camera design. QHYCCD has the fully anti-dew technology for both CCD sensor surface glass and the optic window glass. QHY168C has the electric heating board for the CCD glass windows to prevent the window get dew and the silicon gel tube socket design for control the humidity within CMOS chamber.

AR+AR optic window
In order to avoid the halo around the bright star. The QHY168C has a AR+AR coating optic window rather than the common IR cut window for OSC color cameras. So you need to use your own IR cut filter (most L filter can do that) on front of the camera. You can install the 2inch filter on the M48 thread of the 2inch T ring. Or QHYCCD supplies an optional 2inch filter holder for QHY168C to allow you put this filter when connecting with a flat field corrector.

Specs

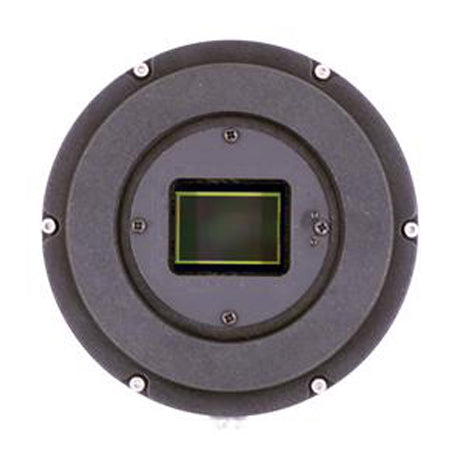

CMOS Sensor	IMX071 COLOR CMOS SENSOR
Effective Pixels	4952*3288,  16mega pixel
Pixel Size	4.8um*4.8um
Shutter	Electric Rolling Shutter
Readout Type	Progressive Scan
Imager Size	APS-C Format
ADC Output Bit	14BIT (14BIT/8BIT OUTPUT)
Exposure Time	30us-3600sec
Max Frame Rate	10FPS@Full Resolution      30FPS@1920*1080 HD 15FPS@4096*2160 4K video 32FPS@1024 line 42FPS@768 line 54FPS@600 line 130FPS@240 line
Weight	700g

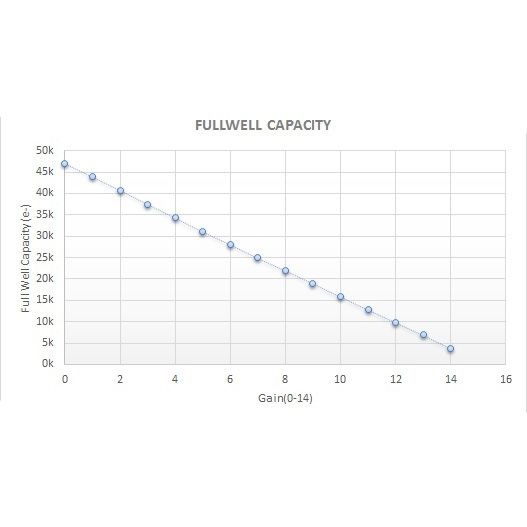

Full Well	46ke-

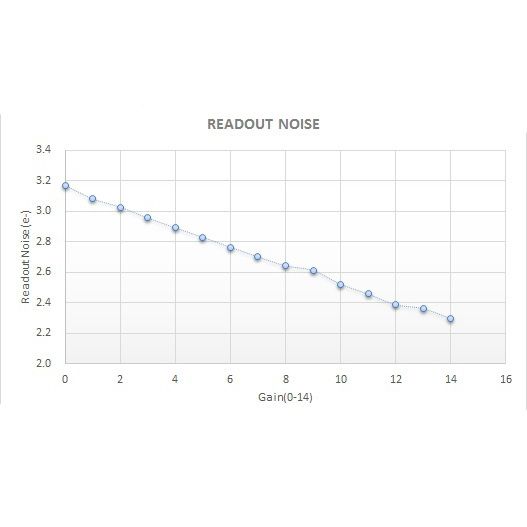

Readout Noise	3.2e-@Lowest Gain  2.3e-@High Analog Gain
Amplifier Glow Control	Yes.  There is no visible amplifier glow on dark image
Cooling System	2-stage TEC    -35C below Ambient
Optic Window	AR+AR optic window
Support Software	SharpCAP,ASCOM,EZCAP_QT,FireCapture
Reference Price	USD1499 (this is the price with no tax and ship cost included)
