Svbony SV305M Pro Autoguider Monochrome Camera 2MP CMOS Sensor
Delivery: Ships from Svbony warehouse located in Hong Kong. The estimated delivery time is 10 business days. 30 days returns policy. Returns location: Rancho Cordova, California, United States.
Features:
- Get a sharp image; uses an extremely sensitive CMOS monochrome sensor; the IMX290LLR-C; which has very high QE (80%); very low readout noise (1.0-3.2e); pixel size 2.9um; 1944*1096 pixels resolution; 6.46mm diagonal

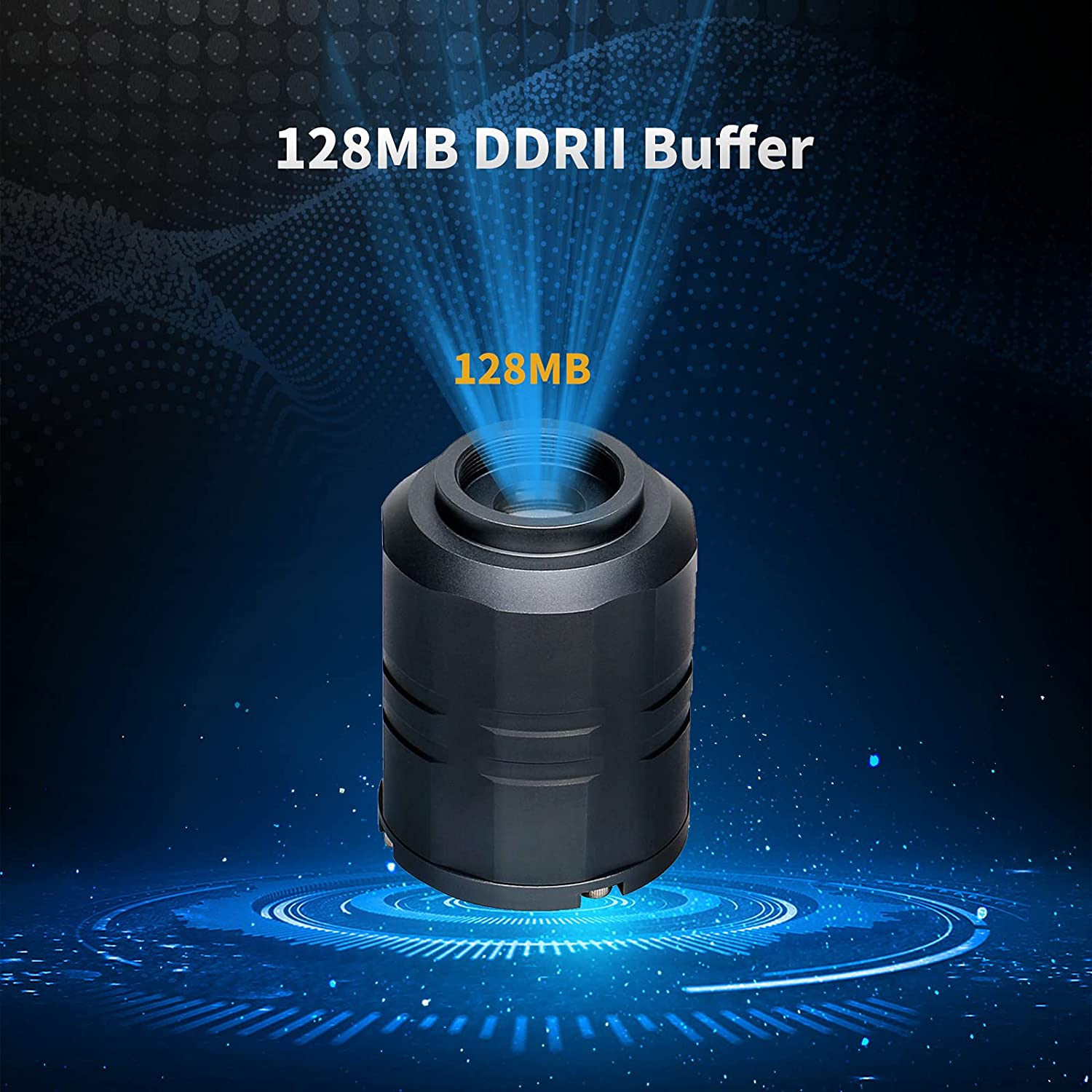

- Has a stable transmission; built-in 128MB DDRII image buffer; cache the image and transfer it to the computer when the USB interface is not busy or being interrupted; get a sound frame; allows a slower computer with USB 3.0; to capture every frame without loss; could run another camera using the same computer; without USB transfer problems from the SV305M Pro
- Improve camera sensitivity; has ROI and BIN functions; any resolution can be set; could read a smaller region of interest (ROI) out from the sensor; leaving the image scale of the object being imaged unchanged; greatly increase the camera rate; BIN2*2 pixel can merge two adjacent pixels; which can improve camera sensitivity
- Can automatically guide; designed with ST4 guiding port; supported by PHD2 and the ASCOM platform; use the computer to control the telescope; has an auto-guiding port; which connects directly to the auto-guider; which usually referred as an ST-4 port; works with analog signals
- Good transformation performance; Using USB3.0 high speed data transmission; quick and efficient for planetary imaging
Description
AR Anti-reflection Coating Lens Glass
The camera's sensitivity to visible light and near-infrared light is very high. Can achieve a variety of imaging with different filters.
1/2.8”CMOS Monochrome Sensor
With IMX290 monochrome sensor, 1/2.8 inch frame, pixel size 2.9um, resolution 1944*1096 pixels, diagonal length 6.46mm, provide low read noise, high dynamic range, high frame rate, 12bit ADC output
USB3.0 high-speed transmission
With USB3.0 high-speed transmission, preview frame rate up to 130fps in 1920*1080 resolution mono8 mode
Support Any BIN 1*1 or BIN 2*2
The product has a pixel merging function and can shoot in BIN2, which greatly improves the sensitivity of the camera.

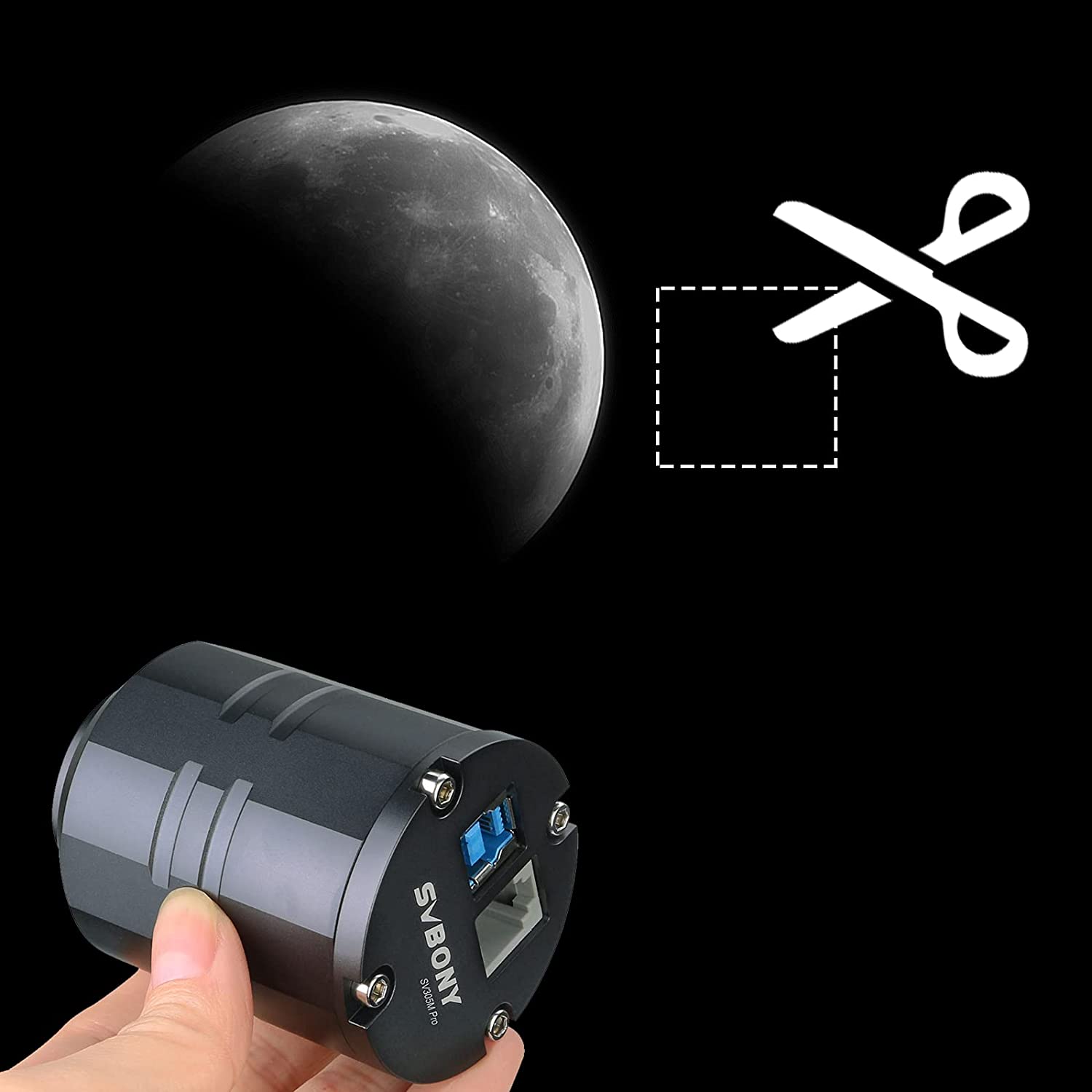

Support Any Area ROI
SV305M Pro has an ROI function, which can "cut" the imaging area and customize the resolution. For planetary shooting "lucky imaging", it can greatly increase the frame rate
Heat dissipation design
With a unique internal heat dissipation structure, it can obtain very good picture quality under long-term exposure

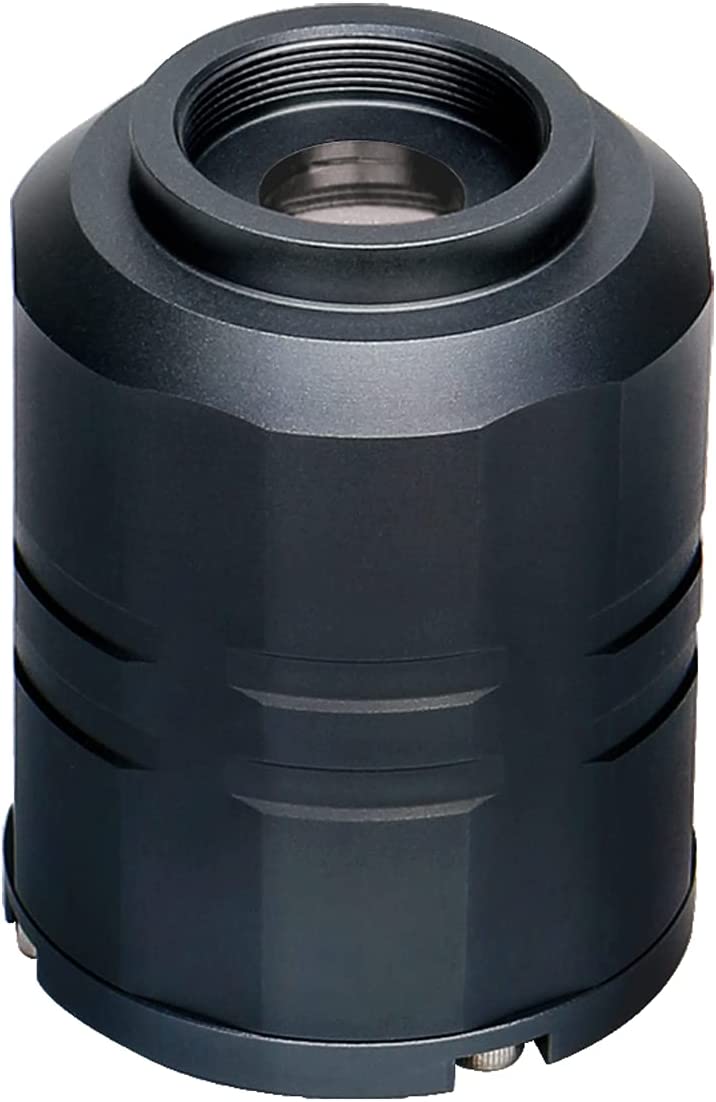

CS thread interface
The camera CS thread interface can be directly connected to the CS lens

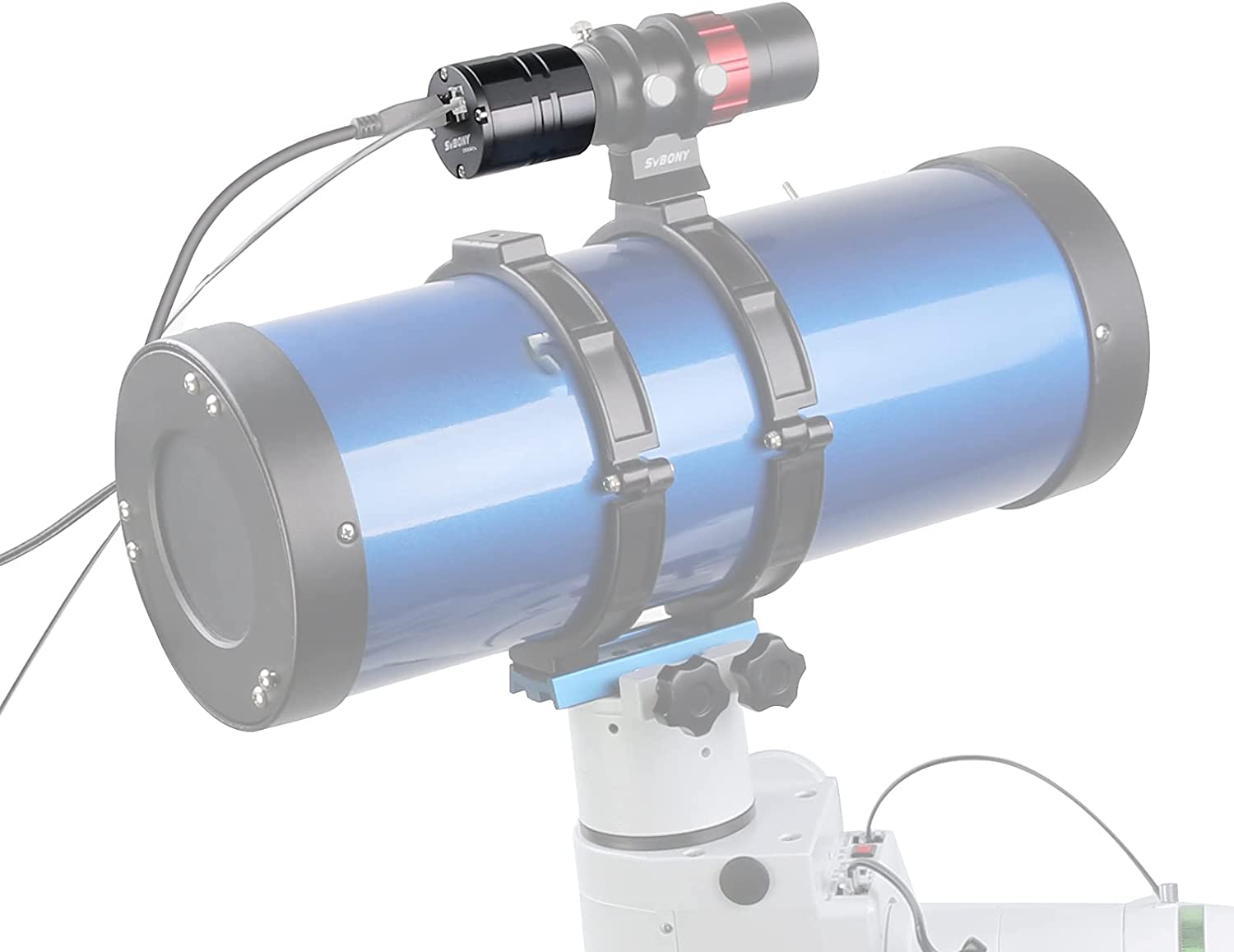

Guide function
SV305M Pro has a pixel size of 2.9μm and a higher sampling accuracy, which means that it can detect more subtle star movement. high-precision and very good guiding product

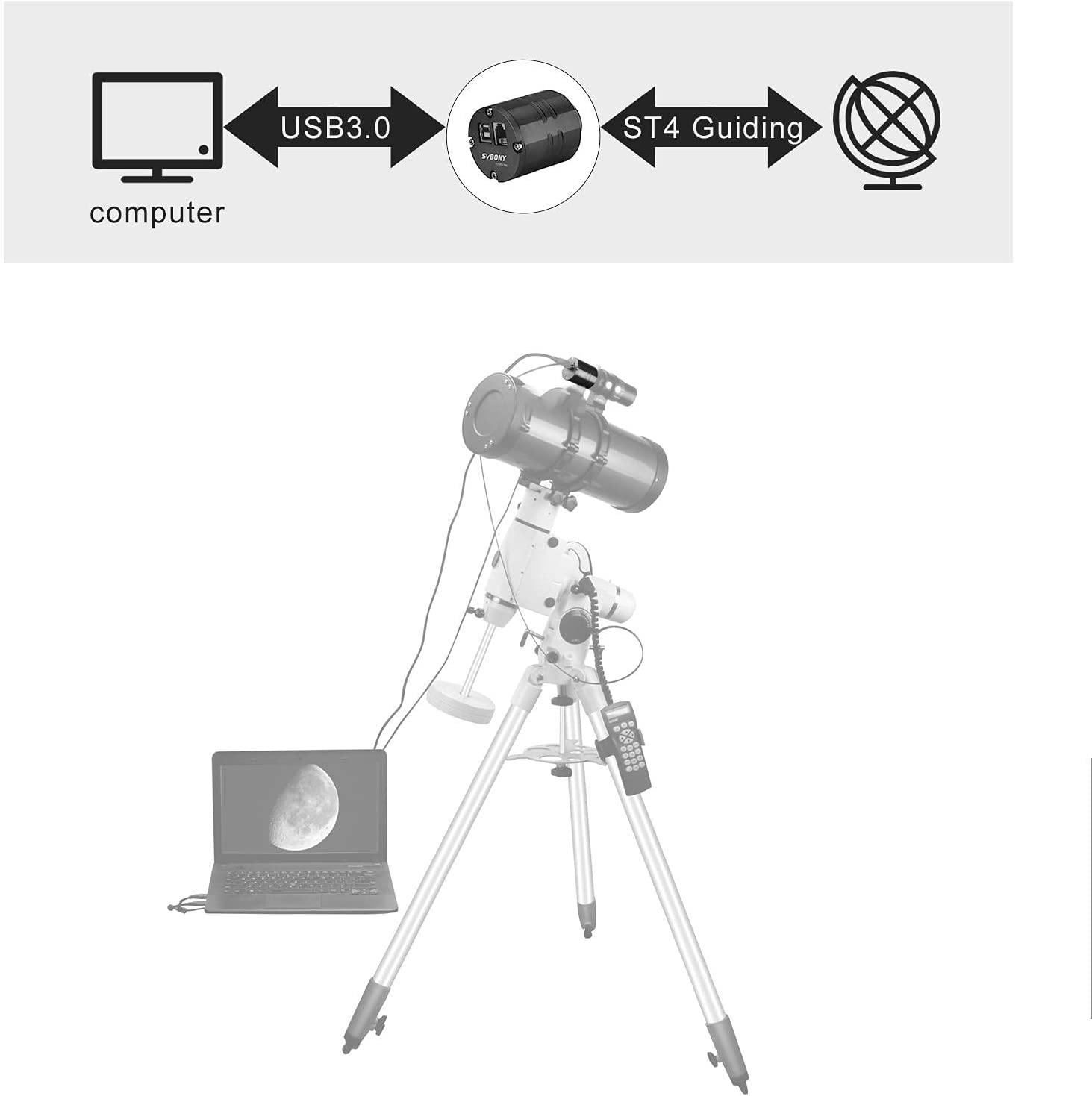

SV305M Pro is equipped with ST4 guide star interface, which can be connected to the Auto Guide port of the equatorial mount with a guide star cable for automatic guide.Supports PHD2 guide star software
Specifications
| Model | SV305M Pro |
| Image Sensor | 1/2.8” COMS monochrome Sensor |
| Sensor Model | SONY IMX290 |
| Image Resolution | 2M Pixels (1944*1096) |
| Diagonal Line | 6.5mm |
| Pixel Size | 2.9μm X 2.9μm |
| USB Type | USB 3.0 |
| Protective Window | AR coated window |
| Guiding Type | 6 Pin ST4 Port |
| Shutter | Electronic Rolling Shutter |
| Exposure Time | 0.03ms-2000s |
| Exposure Mode | Auto/Manual |
| Gain | 1-30 |
| Gain Mode | Auto/Manual |
| White Balance | / |
| Maximum Frame Rate | 130FPS (1920*1080) / 500FPS(320X240) |
| ADC | 12bit |
| Built-in buffer | 128M |
| ROI | Any resolution |
| BIN | 1×1,2×2 |
| USB3.0 Cable Length | 2m |
| Guiding Cable | 1.5m |
| Support System | Windows8.1& win 10 & Linux &Raspberry Pi & Mac OS |
| Working Humidity | 30%-80% |
| Storage Humidity | 20%-90% |
| Operating Temperature | -10℃ to +50℃ |
| Storage Temperature | -20℃ to +60℃ |
| Net Weight | 135g |
| Product Size | Ø49.5X65mm |

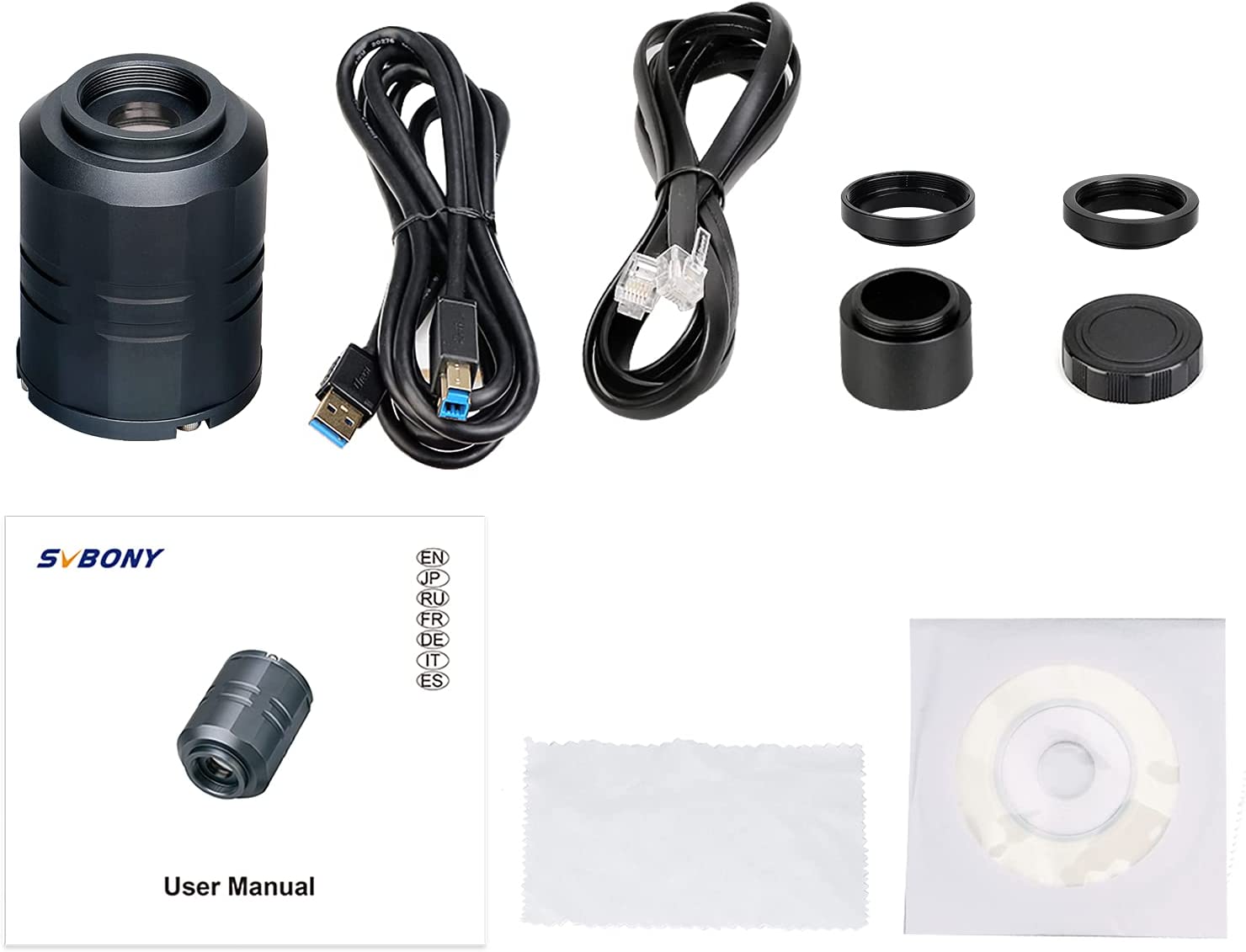

What's included
